Automotive Wire

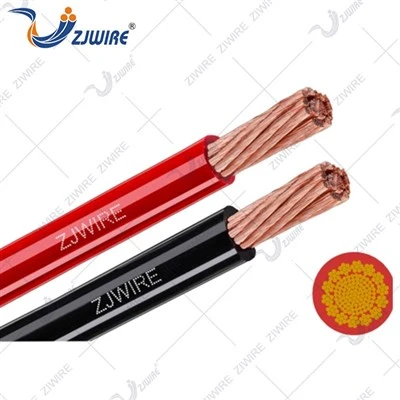

A: There are many characteristics that make automotive wire different from house wire. Automotive wire is flexible with multiple fine wire strands, while house wiring uses a solid conductor or, if stranded wire, has a small number of relatively heavy-gauge wire strands. House wire doesn't bend as easily as automotive wire and breaks if continuously flexed. House wire also has thicker insulation to withstand the rated voltage of 300 or 600 volts. Automotive wire handles greater temperature extremes than household wire and is approved for vehicle use, while house wire is not approved for vehicle use. You should never use standard house wire in automotive applications.

A: Automotive wire refers to the electrical wiring used in vehicles, including cars, trucks, motorcycles, and other modes of transportation. These wires transmit electricity to various vehicle components, such as lights, sensors, and engine parts.

A: Know the Application: Understand where the wire will be used (e.g., battery, speaker, trailer) and choose accordingly.
Check the Current Load: Thicker wires are needed for higher currents to prevent overheating.
Consider the Environment: Wires exposed to heat, moisture, or vibrations need tougher insulation and durability.
Use Color-Coded Wires: Stick to standard colors (red, black, etc.) to avoid confusion during installation.

A: Start by picking the right wires for your car. Use good connectors to keep wires secure. Don’t bend or pull wires too much when installing. It’s best to hire a pro who knows car wiring to do the job safely.

A: Standard automotive cable sizes (cable diameter) and their maximum current ratings are: 2mm (4amp), 3mm (10amp), 4mm (15amp), 5mm (25amp) and 6mm (50amp). Above this and you're into battery and starter (B&S) territory – which uses a different system.

A: Automotive wiring color codes are not universal; however, a common standard exists, with Red typically indicating positive power and Black indicating the ground. Other colors have varying functions, with Yellow for 12-volt memory and Signals, Blue for the Battery, and Green for Fuel Pumps, but functions can differ based on the specific manufacturer and vehicle age. For accurate identification, always consult the vehicle's specific wiring diagram or an aftermarket adapter kit.

A: Select the Ohm setting on the multimeter.
Touch one lead of the multimeter to the metal chassis of the car.
Touch the other lead of the multimeter to the end of the ground wire that is not attached to anything.
If the multimeter reads zero ohms, then the ground wire is good.

A: Colour coding identifies each wire so that its circuit and purpose can easily be identified when servicing or diagnosing electrical issues. It is also needed so that the correct wire can be connected to the correct terminal when assembling the car and the wiring harnesses.
