KGGRP is a low-smoke, flame-retardant flexible power cable commonly used in industrial, commercial, and residential installations requiring fire safety compliance. This type of cable is specifically designed to reduce smoke and toxic gas emission in case of fire, making it suitable for enclosed spaces such as buildings, tunnels, and transport vehicles.

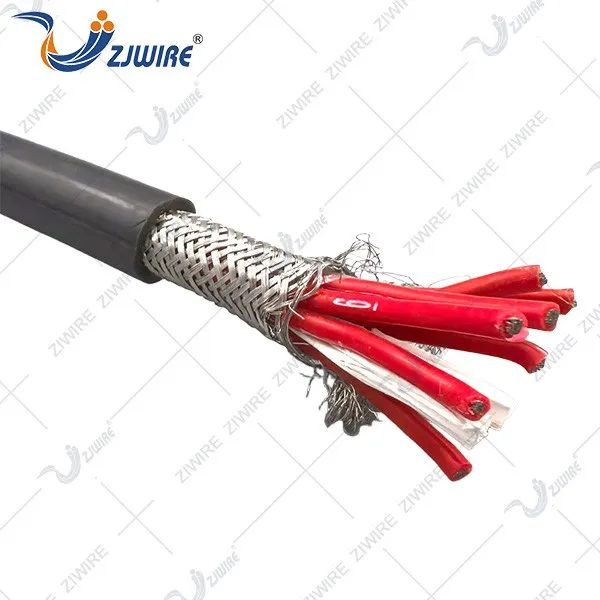

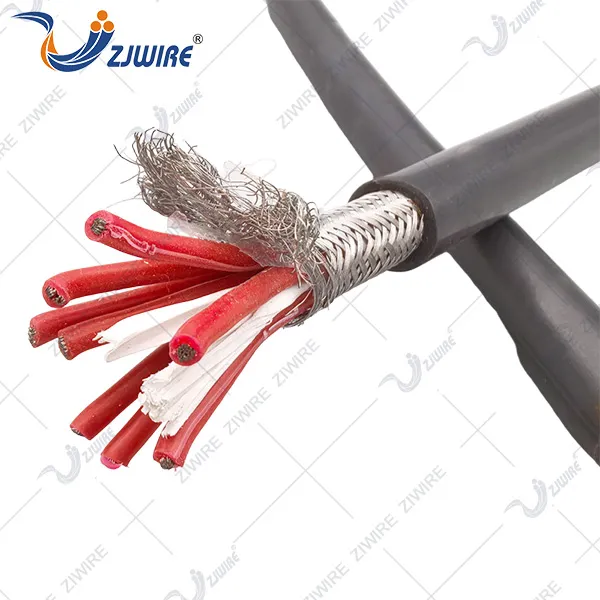

KGGRP Structure
Conductor
- Fine-stranded copper conductor, Class 5 flexible
Insulation
- Flame-retardant PVC or XLPE
Sheath
- Low-smoke, flame-retardant PVC
The cable is often black in color, but other colors are available for identification purposes.
KGGRP Technical Parameters
| Parameter | Specification |
| Rated Voltage | 300/500 V or 450/750 V |
| Temperature Range | -5°C to +70°C (operating) |
| Flame Retardant | IEC 60332-1 / IEC 60332-3 |
| Low Smoke & Halogen-Free | IEC 60754, IEC 61034 |
| Conductor Class | IEC 60228 Class 5 |
| Standard | GB/T 19666-2005 / IEC 60502 |
KGGRP Specifications
| Number of Cores | Conductor Size (mm²) | Applications |
|---|---|---|
| 2 cores | 0.75 – 2.5 | Lighting, indoor power supply |
| 3 cores | 0.75 – 4 | Small appliances, control circuits |
| 4 cores | 0.75 – 6 | Power distribution, industrial equipment |
| 5 cores | 0.75 – 6 | Multi-phase systems, safety circuits |
Common models:
- KGGRP 3×1.5 mm²
- KGGRP 3×2.5 mm²
- KGGRP 4×4 mm²
- KGGRP 5×6 mm²
KGGRP Features
- Low smoke and halogen-free in case of fire
- Flame-retardant and fire-resistant
- Flexible and easy to install
- Mechanically robust for indoor and light industrial use
- Suitable for fire-sensitive areas
KGGRP Applications
- Residential and commercial buildings
- Tunnels, subways, and enclosed public spaces
- Power and control circuits in machinery
- Industrial automation and low-voltage power supply
- Transport vehicles
KGGRP Advantages
- High safety performance in case of fire
- Complies with low-smoke, halogen-free European and Chinese standards
- Durable, flexible, and reliable
- Suitable for modern building and industrial wiring with safety requirements
