Our Zhejiang ZJWIRE solar cables are high-performance, weather-resistant cables specifically designed for photovoltaic (PV) systems. Engineered to transmit DC power efficiently from solar panels to inverters, charge controllers, and other system components, these cables are built to withstand the harshest outdoor environmental conditions.
Specifications & Parameters
|
Conductor Material |
Oxygen-free copper (OFC) or tinned copper |
|
Conductor Cross-Sectional Area |
1.5 mm², 2.5 mm², 4 mm², 6 mm², 10 mm² (customizable) |
|
Insulation Material |
Cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) |
|
Sheath Material |
Thermoplastic elastomer (TPE) or cross-linked polyethylene (XLPE) |
|
Operating Voltage |
DC 1.5 kV, DC 2.0 kV, DC 1.0 kV (standard); Customizable for higher voltages |
|
Operating Temperature Range |
-40°C to +90°C (continuous operation); Up to +120°C (short-term) |
|
Minimum Bending Radius |
6× cable outer diameter (static); 10× cable outer diameter (dynamic) |
|
Length per Roll |
100m, 200m, 500m (customizable) |
|
Flame Retardancy |
Compliant with IEC 60332-1-2 (vertical flame test) |
|
UV Resistance |
ISO 4892-3 (1000 hours UV aging test passed) |
Material & Design
Material Selection
Conductor: Adopts high-purity oxygen-free copper (OFC) with excellent electrical conductivity, low resistance, and minimal power loss.
Insulation: High-density cross-linked polyethylene (XLPE) or EPR insulation provides superior electrical insulation performance, high temperature resistance, and resistance to aging.
Sheath: The thermoplastic elastomer sheath offers exceptional flexibility, wear resistance, UV resistance, and chemical resistance.
Structural & Appearance Design

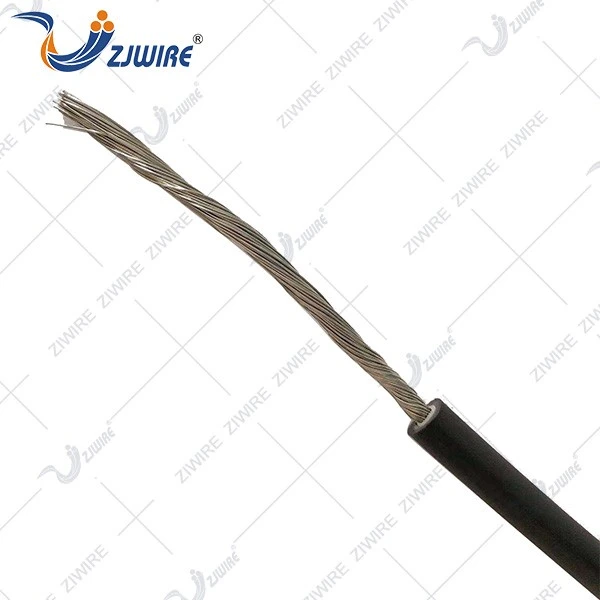

Structural Design: The cable features a compact stranded conductor structure, which improves flexibility and facilitates easy installation in tight spaces.
Appearance: Standard color options include black and red/black paired cables.
Advantage Of Solar Cable
Broad Compatibility: Seamlessly integrates with residential, commercial, off-grid, and portable PV systems.
Harsh Environment Resilience: Engineered to withstand coastal corrosion, desert high temperatures, and high-altitude UV/low-temperature exposure.
Reliable Power Transmission: Ensures stable connectivity between solar panels, inverters, and battery storage units.
Material Flexibility: Tinned copper option available for enhanced corrosion resistance in demanding settings.
Application Of Solar Cable
Our ZJWIRE solar cables are widely used in photovoltaic power generation systems, including but not limited to:
Residential Solar Installations: Rooftop solar panel systems for homes, connecting panels to inverters and battery storage systems.
Commercial & Industrial Solar Projects: Large-scale rooftop solar systems for factories, shopping malls, office buildings, and ground-mounted solar farms.
Off-Grid PV Systems: Remote areas such as rural households, mountain cabins, and communication base stations.
Portable Solar Devices: Solar generators, portable solar panels for camping, and mobile charging stations.
Special Environments: Coastal areas, deserts, and high-altitude regions.
Quality Of Solar Cable
All our ZJWIRE solar cables have passed rigorous testing and obtained international certifications, including IEC 60228, IEC 60502, UL 4703, TÜV, and CE. We implement a strict quality control system from raw material procurement to production, testing, and packaging, ensuring that each batch of cables meets the highest quality standards.
Our Factory
Zhejiang Zhongjing Cable Co., Ltd. has over 20 years of manufacturing experience with advanced production lines, strict testing procedures, and a stable raw material supply. We supply various cables to domestic and international markets with strong OEM/ODM capabilities.
Packaging and Transportation
After-sales service
We provide full technical support, fast response for customer inquiries, and long-term service for distributors and engineering contractors. Any quality issues are handled promptly with guaranteed solutions.
