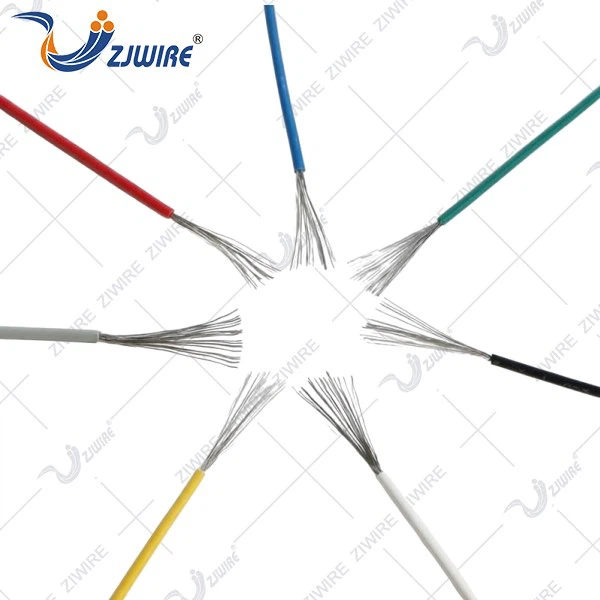

UL1330 cable (also known as UL 1330 AWM wire) is a high-temperature, 600V appliance wiring material standardized by UL758. It features a thick FEP insulation and is primarily used for internal wiring in high-temperature electrical equipment.
Core Specifications
Standard: UL 758, UL 1581
Voltage Rating: 600 Volts
Conductor:
Material: Tin-plated copper; Silver-plated or Nickel-plated optional
Type: Solid or Stranded
Size Range: 30 AWG ~ 18 AWG
Insulation:
Material: Extruded FEP
Feature: Heavy wall thickness
Flame Resistance: Passes UL VW-1 vertical flame test
Compliance: RoHS, REACH
UL1330 Cable Advantages
Extreme Temperature Resistance
Operates reliably from -60°C to 200°C.
Superior Chemical Resistance
Excellent resistance to oil, gasoline, acids, and solvents.
High Dielectric Strength
The thick FEP wall provides excellent insulation for 600V applications
Flame Retardant
Self-extinguishing and meets strict safety standards.
Durability
Resists aging and UV radiation and has good mechanical strength.
UL1330 Cable Applications
Internal wiring for household appliances (ovens, heaters, toasters)
Automotive wiring (headlamps, ignition systems)
Industrial equipment, motors, and transformers
Medical devices and test & measurement equipment
Battery energy storage systems and high-voltage connections
