Can PVC insulated nylon sheathed cable be used in elevator systems?

Can PVC Insulated Nylon Sheathed Cable Be Used in Elevator Systems?

As a supplier of PVC insulated nylon sheathed cables, I often encounter inquiries from customers regarding the suitability of our products for elevator systems. This is a crucial question considering the safety, reliability, and performance requirements of elevator applications. In this blog post, I will delve into the characteristics of PVC insulated nylon sheathed cables and analyze their potential use in elevator systems.

Understanding PVC Insulated Nylon Sheathed Cables

PVC (Polyvinyl Chloride) is a widely used insulation material in the cable industry due to its excellent electrical insulation properties, flexibility, and resistance to chemicals and moisture. Nylon sheathing, on the other hand, provides additional protection against abrasion, mechanical damage, and environmental factors. The combination of PVC insulation and nylon sheathing results in a cable that is durable, flexible, and suitable for a variety of applications.

The PVC insulation in these cables helps to prevent electrical leakage and short circuits, ensuring the safe transmission of electrical power. The nylon sheathing acts as a protective layer, shielding the cable from physical damage, such as cuts, scratches, and impacts. This makes PVC insulated nylon sheathed cables ideal for use in environments where the cable may be exposed to rough handling or harsh conditions.

Requirements for Elevator Cables

Elevator systems have strict requirements for cables due to the critical nature of their operation. The cables used in elevators must be able to withstand high mechanical stress, including tension, bending, and torsion. They must also be resistant to fire, smoke, and toxic gases to ensure the safety of passengers in case of an emergency.

In addition, elevator cables need to have excellent electrical properties to ensure reliable power transmission and signal communication. They must be able to maintain a stable electrical performance over a long period of time, even under varying environmental conditions.

Advantages of Using PVC Insulated Nylon Sheathed Cables in Elevator Systems

1. Mechanical Strength: The nylon sheathing provides excellent mechanical protection, making the cable more resistant to abrasion and mechanical damage. This is particularly important in elevator systems where the cable is constantly subjected to movement and stress.
2. Flexibility: PVC insulated nylon sheathed cables are highly flexible, which allows them to be easily installed in tight spaces and around corners. This flexibility is essential for elevator applications where the cable needs to be routed through narrow shafts and along complex paths.
3. Chemical Resistance: PVC insulation is resistant to a wide range of chemicals, including oils, solvents, and acids. This makes the cable suitable for use in environments where it may be exposed to chemical substances.
4. Flame Resistance: Many PVC insulated nylon sheathed cables are designed to have excellent flame resistance properties. They can self - extinguish in case of a fire, reducing the risk of fire spread and protecting the elevator system and its passengers.

Limitations and Considerations

1. Temperature Resistance: While PVC insulated nylon sheathed cables can operate within a certain temperature range, extreme temperatures can affect their performance. Elevator systems may experience temperature variations, especially in areas with poor ventilation or in high - rise buildings. It is important to ensure that the cable can withstand the expected temperature conditions.
2. Electrical Performance: In some high - speed elevator systems, the electrical requirements may be more stringent. The cable needs to have low capacitance and impedance to ensure efficient power transmission and signal integrity. It is necessary to carefully evaluate the electrical properties of the cable to meet the specific needs of the elevator system.

Comparison with Other Types of Cables

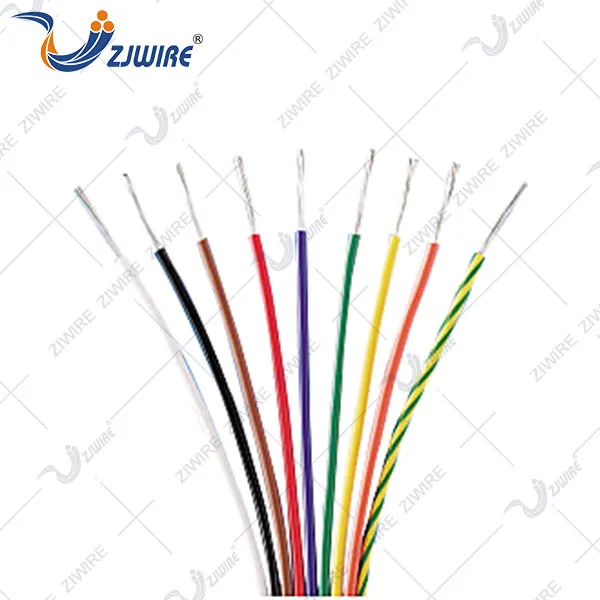

1. UL Cable: UL cables are widely used in various electrical applications, including elevator systems. UL Cable are tested and certified to meet certain safety standards. While PVC insulated nylon sheathed cables can also meet safety requirements, UL cables may have additional certifications and features that make them more suitable for specific elevator applications.
2. UL SJ00 Cable: UL SJ00 Cable are known for their flexibility and durability. They are often used in portable electrical equipment and may also be considered for elevator systems. However, PVC insulated nylon sheathed cables may offer better abrasion resistance and chemical resistance in some cases.
3. NM - B Cable: NM - B Cable are commonly used in residential and commercial wiring. They are not typically designed for the high - stress environment of elevator systems. PVC insulated nylon sheathed cables are more suitable for elevator applications due to their mechanical strength and flexibility.

Case Studies and Real - World Applications

In many elevator installations, PVC insulated nylon sheathed cables have been successfully used. For example, in a mid - rise office building, these cables were installed in the elevator shafts to provide power and control signals. The cables were able to withstand the mechanical stress of the elevator's movement and the environmental conditions in the shaft. Over a period of several years, there were no significant issues with the cables, demonstrating their reliability and durability.

Conclusion

In conclusion, PVC insulated nylon sheathed cables can be a viable option for elevator systems. They offer a combination of mechanical strength, flexibility, chemical resistance, and flame resistance. However, it is important to carefully evaluate the specific requirements of the elevator system, including temperature, electrical performance, and mechanical stress. By considering these factors, we can ensure that the cables meet the safety and performance standards of the elevator application.

If you are interested in using PVC insulated nylon sheathed cables for your elevator system, I encourage you to contact us for more information. Our team of experts can provide you with detailed product specifications, technical support, and guidance on cable selection. We are committed to providing high - quality cables that meet your specific needs and ensure the safe and reliable operation of your elevator system.
