Hey there! I'm an American Wire Gauge (AWG) supplier, and I'm stoked to chat about the standard range of AWG. It's a topic that might seem a bit technical at first, but it's super important in the world of electrical wiring and all sorts of other industries.
So, what exactly is American Wire Gauge? Well, it's a standardized system for measuring the diameter of electrical wire. The AWG system has been around for ages, and it's used all over the place in the United States and many other countries. The cool thing about it is that it's based on a logarithmic scale, which means that as the gauge number goes up, the wire diameter actually gets smaller.
Let's start by looking at the general range. The standard range of AWG typically goes from 0000 (also written as 4/0) all the way up to 40. That's a pretty wide range, and each gauge has its own specific uses and characteristics.
At the lower end of the scale, we have the big boys. 0000 AWG wire is massive! It has a diameter of about 0.46 inches (11.684 mm). This kind of heavy - duty wire is usually used for high - current applications, like in electrical substations or for large industrial equipment. It can handle a ton of current without overheating, which is crucial in these high - power situations. As we move up the numbers a bit, 2/0 and 1/0 AWG wires are also commonly used in industrial settings and for large electrical installations, such as in some commercial buildings for power distribution.
Now, when we get into the mid - range gauges, say from 10 AWG to 14 AWG, they're super popular for household electrical wiring. A 12 AWG wire, for example, is often used for general lighting circuits and outlets in homes. It can safely carry a decent amount of current, around 20 amps. A 14 AWG wire is a bit thinner and is typically rated for 15 - amp circuits, which are often used for things like small lamps or low - power appliances.
As we keep going up the gauge numbers, we start getting into thinner wires. 18 AWG to 22 AWG wires are commonly used in electronics. They're great for things like wiring printed circuit boards (PCBs), making connections in small electronic devices, or for use in speaker wires in audio systems. These thinner wires are more flexible and easier to work with in tight spaces, but they can't handle as much current as the thicker ones.
Once we reach the higher gauges, like 30 AWG and above, the wires are extremely thin. They're often used in very delicate electronic applications, such as in micro - electronics and some types of sensors. These wires are so thin that they require special handling to avoid breakage.
Now, let's talk about some specific cables that fall within the AWG range and are commonly used in different applications. One of them is the UL11267 Cable. This cable is designed to meet certain safety and performance standards set by Underwriters Laboratories (UL). It's often used in applications where reliability and safety are a must, such as in some industrial control systems. The AWG of the wires inside the UL11267 Cable can vary depending on the specific requirements of the application, but it's usually in the range that can handle the electrical load of those systems.
Another important one is the UL1430 Cable. This cable is used in a variety of electrical installations, including some in commercial buildings. It has to meet strict UL standards to ensure that it can operate safely under different conditions. The AWG of the wires in this cable is chosen based on factors like the distance the power needs to travel and the amount of current it needs to carry.

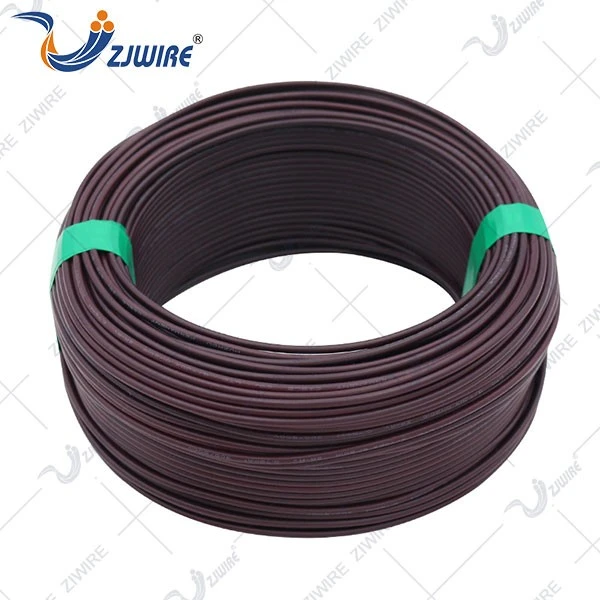

The UL1284 Cable is also a well - known cable. It's commonly used in communication and data transmission applications. The wires inside this cable are often in the mid - to high - gauge range, as they need to be flexible and able to carry signals without too much interference.
When you're choosing the right AWG wire for your project, there are a few things to keep in mind. First, you need to consider the amount of current that will be flowing through the wire. If you use a wire with a gauge that's too small for the current, it can overheat, which is not only a fire hazard but can also damage your equipment. You also need to think about the length of the wire run. Longer wire runs can cause more resistance, so you might need a thicker wire to compensate for that and ensure that the voltage at the end of the run is still within an acceptable range.
Another factor is the environment where the wire will be installed. If it's in a high - temperature or high - humidity area, you might need a wire with better insulation and heat - resistance properties. And if it's in a place where there's a lot of physical stress, like in a moving machine, you'll want a wire that's more durable and less likely to break.
As an AWG supplier, I've seen firsthand how important it is to get the right wire for the job. That's why I'm always here to help. Whether you're working on a small DIY electronics project or a large industrial installation, I can provide you with the right AWG wire and cables to meet your needs.
If you're in the market for American Wire Gauge products, don't hesitate to reach out. I'm here to answer any questions you might have, help you choose the right products, and get you the best deals. You can start the conversation by just dropping me a message. Let's work together to make sure your electrical projects are a success!
